Infusion & Injection

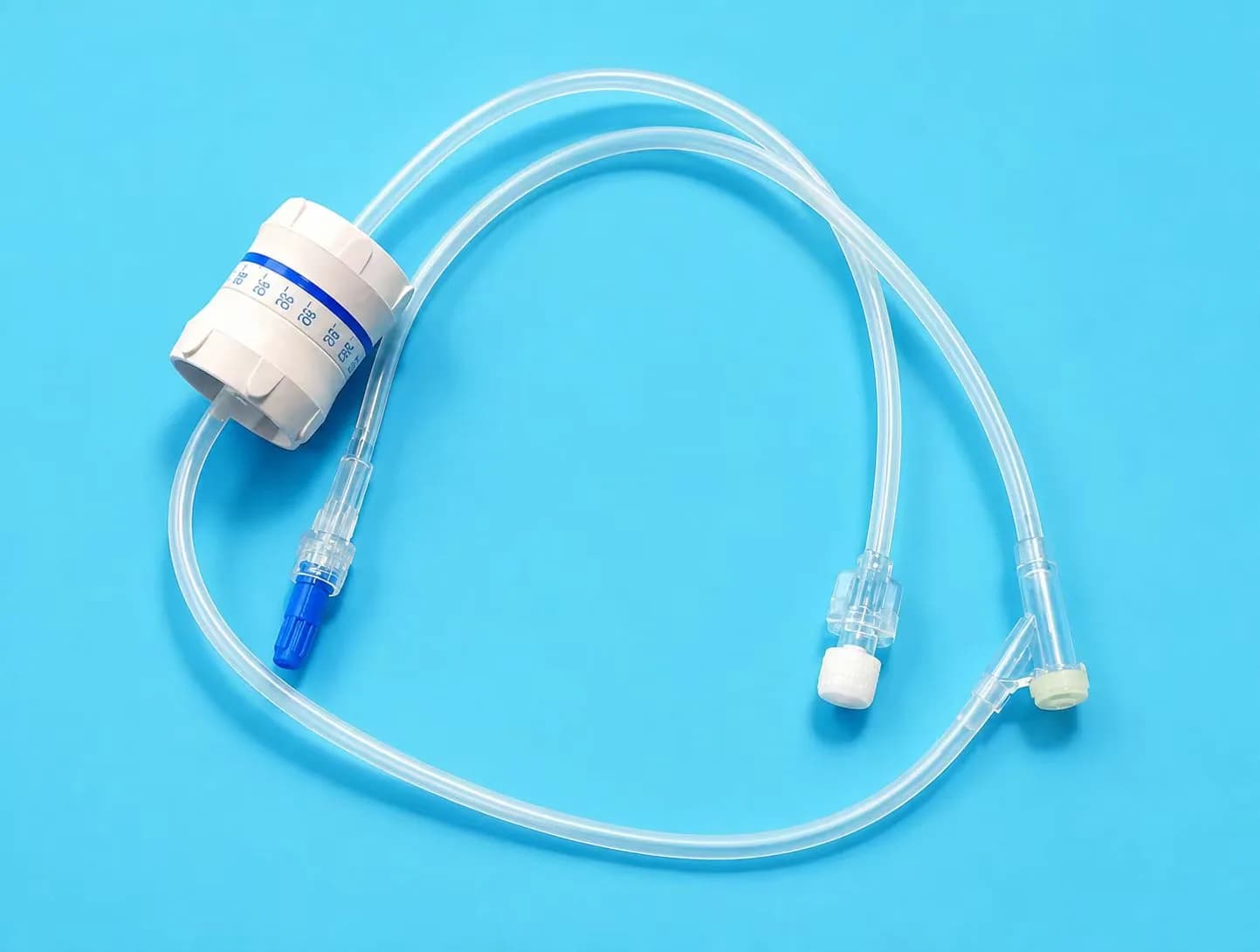

IV Flow Regulator Extension Set, 60 cm with Y-Site

60 cm multi-segment extension line

Extension configuration with a medicine-adding device, Y-site, flow regulator and capped Luer Lock terminal.

Key takeaways

60 cm multi-segment extension line (20 + 20 + 20 cm) with a flow regulator, Y-site and capped medicine-adding device.
Dial-type regulator lets staff set a target rate in ml/h; the company catalog lists a 5–250 ml/h scale.
Capped Luer Lock terminal for a secure connection to the patient line; shorter than our 150 cm plain extension set, with a regulator and Y-site added.

This IV flow regulator extension set fits between an infusion set and the patient line and adds a dial regulator, so staff can select a rate in ml per hour instead of counting drops with a roller clamp. The 60 cm line is built from three 20 cm segments carrying a capped medicine-adding device, a Y-site and the regulator, and ends in a capped Luer Lock.

Key Features

Flow regulator with rate dial (5–250 ml/h scale per company catalog)
60 cm total length: 20 cm + 20 cm + 20 cm
Medicine-adding device with cap plus a Y-site
Luer Lock terminal with protective cap
Sterile, single use

Applications

Gravity infusions that need a steadier, easier-to-set rate on general wards, in step-down units and in clinics without enough infusion pumps. Dial regulators do not replace a pump where precise dosing is required, and the delivered rate should be checked after setting.

How to specify when requesting a quote

Rate scale on the dial and required accuracy statement
Segment lengths and position of the Y-site and medication port
Tubing material and DEHP declaration
Luer Lock terminal and inlet connector
Pack counts, label language and destination market

Technical and purchasing information

Extension configuration with a medicine-adding device, Y-site, flow regulator and capped Luer Lock terminal. The final configuration, packaging and supporting documents are confirmed against your order and destination market.

Tube: 60 cm total: 20 cm + 20 cm + 20 cm
Configuration: Medicine-adding device with cap + Y-site + flow regulator + Luer Lock with cap

Application and configuration

Confirm the intended use, material, size and model before sample approval or production. Product-specific options are recorded in the quotation and specification sheet.

Packaging and cartons

Packaging, artwork and carton requirements can be reviewed for the selected product. Feasibility is confirmed for the exact order rather than assumed across the category.

Quality and documentation

Available quality and export records vary by product and market. Share the destination and required documents so they can be checked before approval.

Buyer questions, answered

Clear answers for preparing a comparable sourcing request for I.V. Flow Regulator Extension Set.

What does a flow regulator do on an IV line?

It lets staff set a target rate in ml per hour by turning a dial instead of counting drops and adjusting a roller clamp. On this product the regulator sits in a 60 cm extension line together with a Y-site and a capped medicine-adding device.

How does a dial flow regulator work?

Turning the dial changes the size of a channel inside the regulator, which limits flow to the marked rate. Actual delivery can vary with container height, fluid viscosity and the patient's venous pressure, so check the rate after setting. A dial regulator is not a substitute for an infusion pump where precise dosing is required.

How do you use an IV flow regulator extension set?

Connect the extension set between the infusion set and the patient line, prime it to remove air, then close the dial before connecting the capped Luer Lock end. Open the dial to the prescribed rate and verify the drip rate. Always follow the instructions for use supplied with the product.

What rate range does the dial cover?

Our company catalog lists this product with a 5 to 250 ml/h dial. The scale for the exact model you order is confirmed on the specification sheet before approval.
