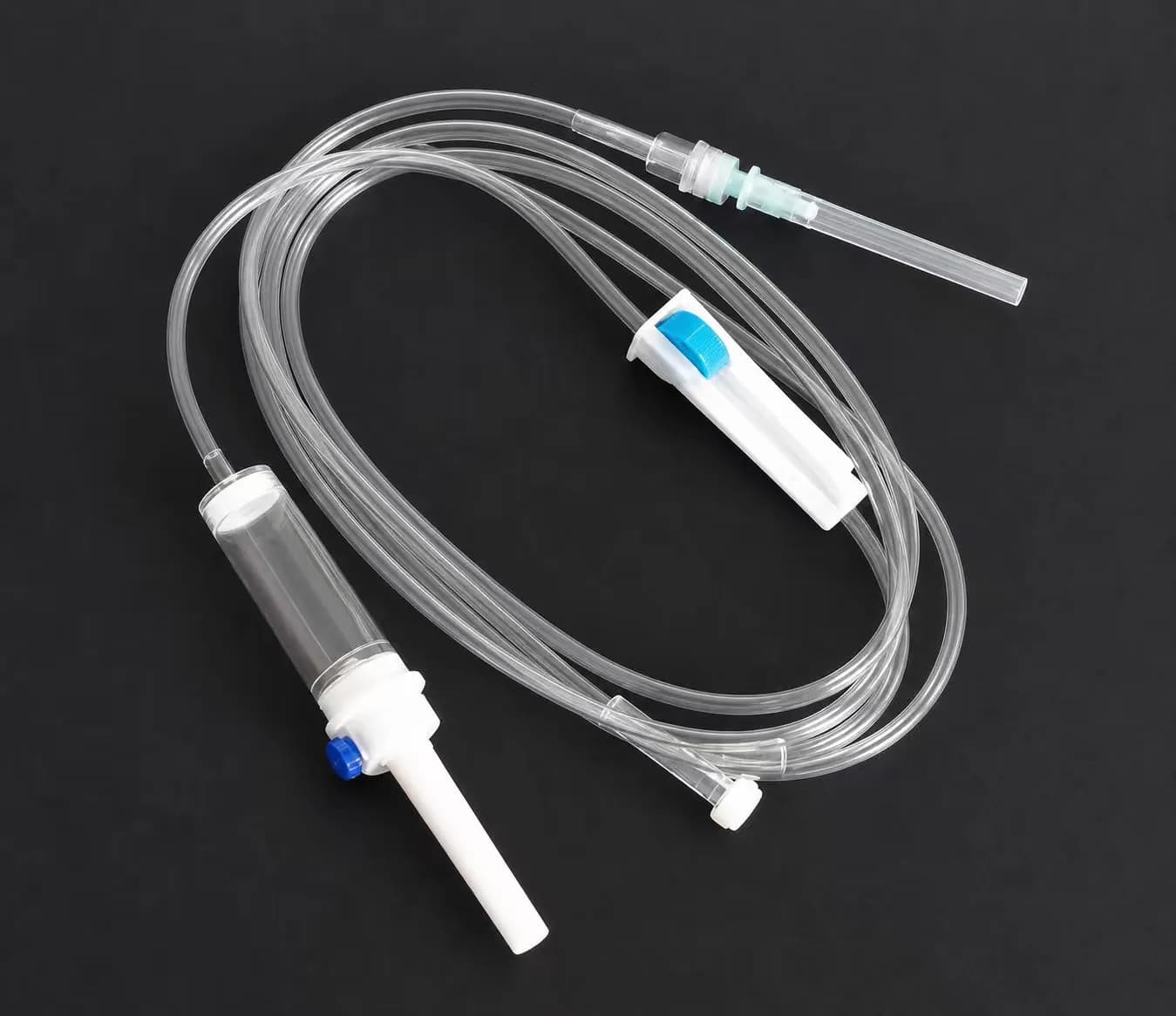

Infusion Sets for Single Use (Y-Site) — Luer Lock

Infusion & Injection

Y-Site Infusion Set, Luer Lock with Hypodermic Needle

Y-site medicine-adding configuration

Y-type single-use infusion set with fluid filter, medicine-adding Y-site and a Luer Lock connector with hypodermic needle.

Request a quote View specifications ↓

Key takeaways

Y-type infusion set with a medicine-adding Y-site and a threaded Luer Lock connector at the patient end.
Supplied with a hypodermic needle screwed onto the Luer Lock; chamber, tube and regulator match our basic sets.
Suited to lines that receive repeated injections or a secondary infusion, where a locked connection is preferred.

This Y-site infusion set with a Luer Lock connector is built for lines that will be handled often. The medicine-adding Y-site takes syringe injections or a secondary set, and the threaded Luer Lock at the patient end keeps the needle secured while the line is accessed repeatedly. Buyers searching for an infusion set with Y connector and Luer Lock will find the same chamber, tubing and regulator as our basic range.

Key Features

Medicine-adding Y-site
Threaded Luer Lock connector with hypodermic needle
48 mm drip chamber with air vent and fluid filter
1.5 m standard PVC tube, 3.0 × 3.86 mm ID/OD; standard PP/PE flow regulator
Sterile, single use

Applications

Intermittent IV medication on medical and surgical wards, post-operative lines with scheduled doses, and patients who are moved while the infusion runs. Hospitals that already buy Luer Lock syringes can use one connector type across injection and infusion.

How to specify when requesting a quote

Y-site material (latex-free requirement)
Needle gauge and length on the Luer Lock
Connector standard and drop factor
DEHP declaration and filter rating
Pack counts, label language and destination market

Technical and purchasing information

Y-type single-use infusion set with fluid filter, medicine-adding Y-site and a Luer Lock connector with hypodermic needle. The final configuration, packaging and supporting documents are confirmed against your order and destination market.

Chamber: 48 mm chamber with air vent and fluid filter
Tube: 1.5 m standard PVC tube, 3.0 × 3.86 mm ID/OD
Flow Regulator: Standard PP/PE flow regulator
Connector: Luer Lock with hypodermic needle

Application and configuration

Confirm the intended use, material, size and model before sample approval or production. Product-specific options are recorded in the quotation and specification sheet.

Packaging and cartons

Packaging, artwork and carton requirements can be reviewed for the selected product. Feasibility is confirmed for the exact order rather than assumed across the category.

Quality and documentation

Available quality and export records vary by product and market. Share the destination and required documents so they can be checked before approval.

Buyer questions, answered

Clear answers for preparing a comparable sourcing request for Infusion Sets for Single Use (Y-Site) — Luer Lock.

Luer Lock or Luer Slip: which is better for a Y-site infusion set?

When a line is accessed several times a day through the Y-site, the Luer Lock connector is often preferred because the threaded joint at the patient end is less likely to loosen. The Luer Slip version is faster to connect. Both of our Y-site sets otherwise share the same chamber, tubing and regulator.

How do you set up a Y-site IV line?

Prime the primary set with the regulator, then connect it to the patient. To give a drug, disinfect the Y-site, attach the syringe or secondary set, and control the rate of each line separately. Follow your facility protocol and the product instructions for use.

Is this Y-site infusion set supplied with a needle?

Yes. It comes with a hypodermic needle fitted on the Luer Lock connector. The needle gauge and length are confirmed in your quotation.

Is an IV administration set with Y-connector the same product?

In US terminology an IV administration set with a Y-connector or Y-site describes the same type of gravity line. Compare connector type, drop factor, filter and Y-site material when you match it to your current supplier.
