Infusion Sets for Single Use (Y-Site) — Luer Slip

Infusion & Injection

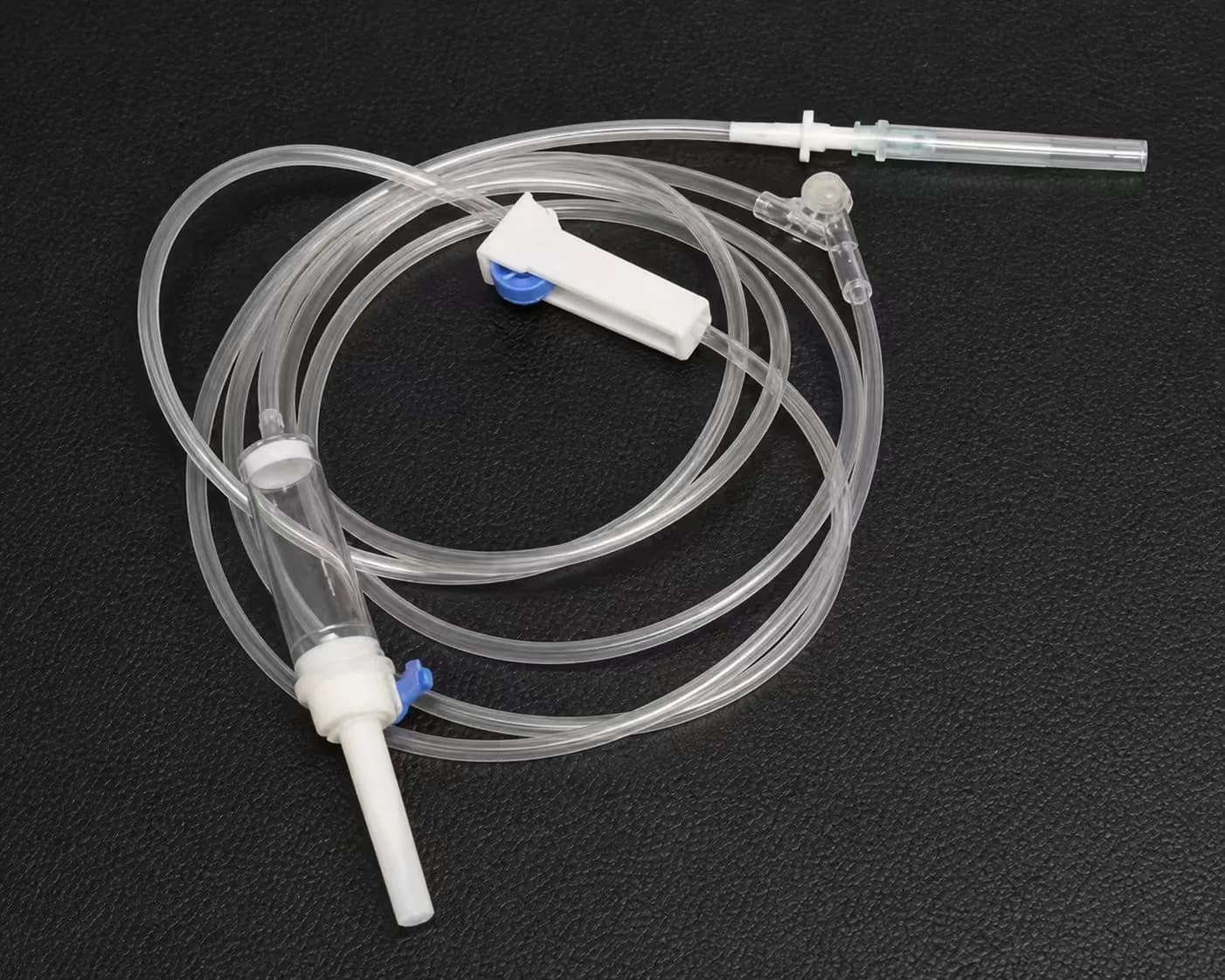

Y-Site Infusion Set, Luer Slip with Hypodermic Needle

Y-site medicine-adding configuration

Y-type single-use infusion set with fluid filter, medicine-adding Y-site and a Luer Slip connector with hypodermic needle.

Request a quote View specifications ↓

Key takeaways

Y-type infusion set with a medicine-adding Y-site for bolus injections or a secondary line without disconnecting the primary line.
Luer Slip connector with hypodermic needle; 48 mm vented drip chamber with fluid filter, 1.5 m PVC tube, PP/PE regulator.
Y-site material (latex or latex-free) is confirmed on the specification sheet before order.

This Y-site infusion set adds a medicine-adding Y port to our basic gravity line, so staff can inject a drug or connect a second infusion without opening the main line. The patient end is a Luer Slip connector with a hypodermic needle fitted, the push-fit option used on many general wards.

Key Features

Medicine-adding Y-site on the line
48 mm drip chamber with air vent and fluid filter
1.5 m standard PVC tube, 3.0 × 3.86 mm ID/OD
Standard PP/PE flow regulator
Luer Slip connector with hypodermic needle; sterile, single use

Applications

Wards where IV antibiotics, analgesics or electrolytes are given alongside maintenance fluids; emergency rooms that need a quick injection point; and outpatient infusion rooms running a secondary bag. Where connections must lock, choose the Luer Lock Y-site version, which is otherwise the same set.

How to specify when requesting a quote

Y-site material requirement (latex-free if needed)
Needle gauge and length
Drop factor and filter rating
DEHP declaration
Pack counts, label language and destination market

Technical and purchasing information

Y-type single-use infusion set with fluid filter, medicine-adding Y-site and a Luer Slip connector with hypodermic needle. The final configuration, packaging and supporting documents are confirmed against your order and destination market.

Chamber: 48 mm chamber with air vent and fluid filter
Tube: 1.5 m standard PVC tube, 3.0 × 3.86 mm ID/OD
Flow Regulator: Standard PP/PE flow regulator
Connector: Luer Slip with hypodermic needle

Application and configuration

Confirm the intended use, material, size and model before sample approval or production. Product-specific options are recorded in the quotation and specification sheet.

Packaging and cartons

Packaging, artwork and carton requirements can be reviewed for the selected product. Feasibility is confirmed for the exact order rather than assumed across the category.

Quality and documentation

Available quality and export records vary by product and market. Share the destination and required documents so they can be checked before approval.

Buyer questions, answered

Clear answers for preparing a comparable sourcing request for Infusion Sets for Single Use (Y-Site) — Luer Slip.

What is a Y-site on an IV set used for?

A Y-site is an injection port molded into the tubing in a Y shape. Staff use it to give a drug with a syringe or to connect a secondary infusion without disconnecting the primary line, so the main connection stays closed.

How is a Y-site used to add a secondary (piggyback) medication?

Disinfect the Y-site, connect the secondary set or syringe, and control each line with its own regulator. For a gravity piggyback, the secondary container is usually hung higher than the primary so it runs first. Follow your facility protocol and the instructions for use.

Luer Slip or Luer Lock: which Y-site infusion set should I buy?

Our two Y-site sets are the same except for the patient connector. The Luer Slip version pushes on and is quicker to connect; the Luer Lock version screws on and resists disconnection. Choose the one that matches the needles and accessories used on your wards.

Is the Y-site latex-free?

The Y-site material is not listed on this page. It is confirmed on the specification sheet, so tell us if your market or tender requires a latex-free injection site.
