Infusion & Injection

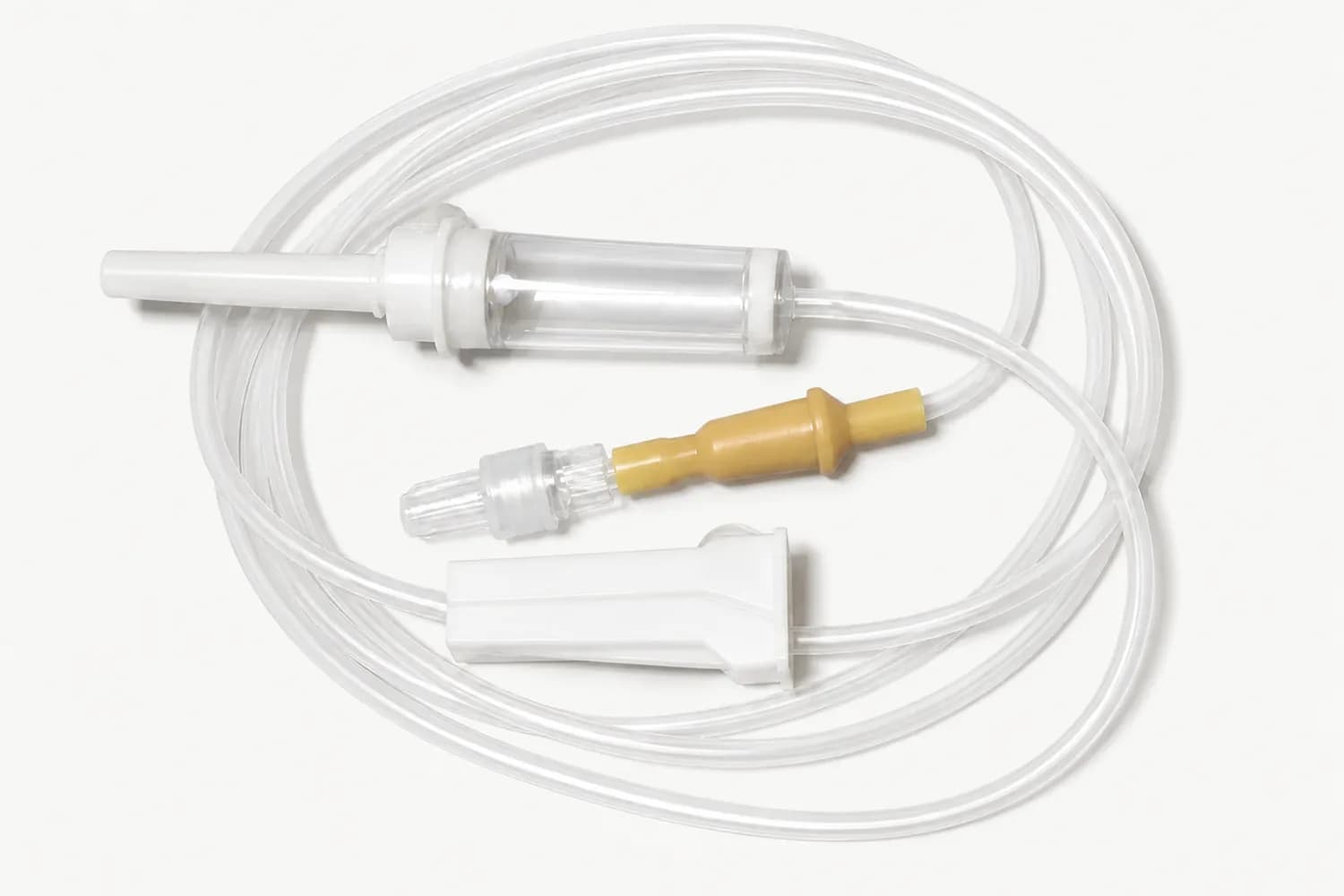

Luer Lock Infusion Set without Needle (Protective Cap)
Basic export configuration · Protective cap
Basic single-use infusion set with a 48 mm chamber, air vent, fluid filter, standard flow regulator and capped Luer Lock connection.
Key takeaways
- Threaded Luer Lock connector sealed with a protective cap; no needle in the pack.
- Built to screw onto Luer Lock extension sets and other threaded accessories for a secure line.
- Basic line: 48 mm vented drip chamber with fluid filter, 1.5 m PVC tube (3.0 × 3.86 mm), standard PP/PE regulator.
This Luer Lock infusion set without needle combines the capped terminal of our needle-free set with a threaded connector. The cap keeps the connector sterile until use; the Luer Lock then screws onto an extension set or another threaded device so the joint does not pull apart easily. It is a common choice when an infusion line is built from several Luer Lock components.
Key Features
- Luer Lock (threaded) connector with protective cap, no needle
- 48 mm drip chamber with air vent and fluid filter
- 1.5 m standard PVC tube, 3.0 × 3.86 mm ID/OD
- Standard PP/PE flow regulator
- Sterile, single use
Applications
Ward and ICU gravity infusions connected through Luer Lock extension sets or flow regulator extension sets, patients who are moved between departments, and hospitals that specify locking connections across the IV line. Pair it with our 150 cm extension set when extra length is needed.
How to specify when requesting a quote
- Capped Luer Lock terminal and the connector standard you require
- Filter rating and drop factor from your tender
- Whether a vented spike is required
- DEHP and latex declarations
- Packing, labeling language and destination market
Technical and purchasing information
Basic single-use infusion set with a 48 mm chamber, air vent, fluid filter, standard flow regulator and capped Luer Lock connection. The final configuration, packaging and supporting documents are confirmed against your order and destination market.
- Chamber
- 48 mm chamber with air vent and fluid filter
- Tube
- 1.5 m standard PVC tube, 3.0 × 3.86 mm ID/OD
- Flow Regulator
- Standard PP/PE flow regulator
- Connector
- Luer Lock with protective cap
Application and configuration
Confirm the intended use, material, size and model before sample approval or production. Product-specific options are recorded in the quotation and specification sheet.
Packaging and cartons
Packaging, artwork and carton requirements can be reviewed for the selected product. Feasibility is confirmed for the exact order rather than assumed across the category.
Quality and documentation
Available quality and export records vary by product and market. Share the destination and required documents so they can be checked before approval.
Buyer questions, answered
Clear answers for preparing a comparable sourcing request for Infusion Sets for Single Use — Luer Lock with Protective Cap.
Is Luer Lock or Luer Slip better for an infusion set?
Neither is better in every case. Luer Lock screws on and resists accidental disconnection, which is why many hospitals specify it for lines joined to extension sets or used on mobile patients. Luer Slip attaches faster and usually costs less. Match the connector to the fittings already used on your wards.
How do you use an infusion set?
Close the flow regulator, insert the spike into the fluid container, squeeze the drip chamber to part-fill it, then open the regulator to prime the tubing and clear the air. Remove the protective cap only when you connect the Luer Lock to the patient line, then set the rate. Always follow the instructions for use supplied with the product.
What filter size does this infusion set use?
The drip chamber includes a fluid filter. Its pore rating is not listed on this page and is confirmed on the specification sheet, so state any filter requirement from your tender when you request a quote.

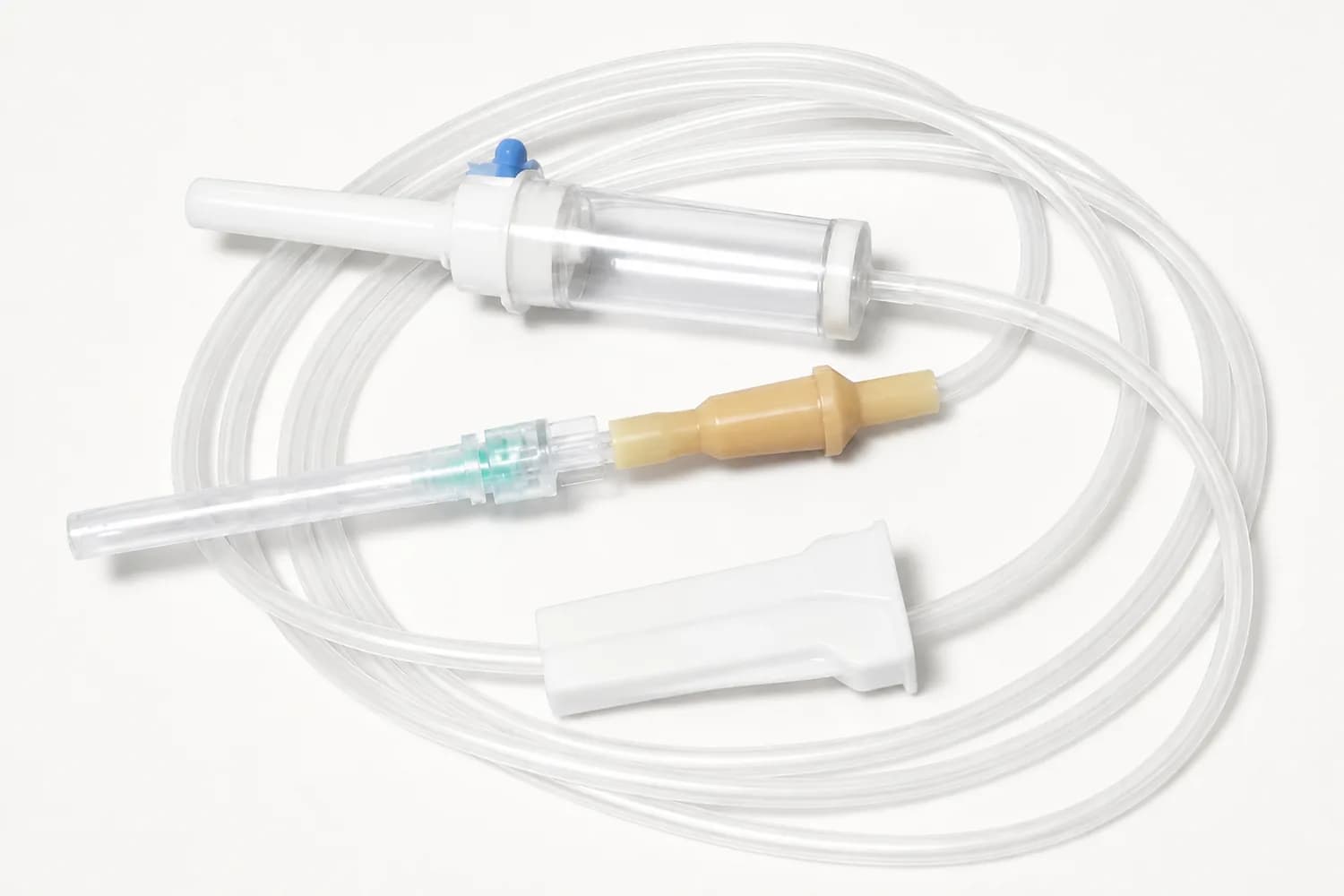

What is the difference between this set and the Luer Lock set with needle?
Chamber, tubing and regulator are the same. This version ends in a capped Luer Lock and has no needle, while the other version has a hypodermic needle screwed onto the Luer Lock.
Request the technical datasheet
Include your destination market, target quantity and preferred packaging.
