Infusion & Injection

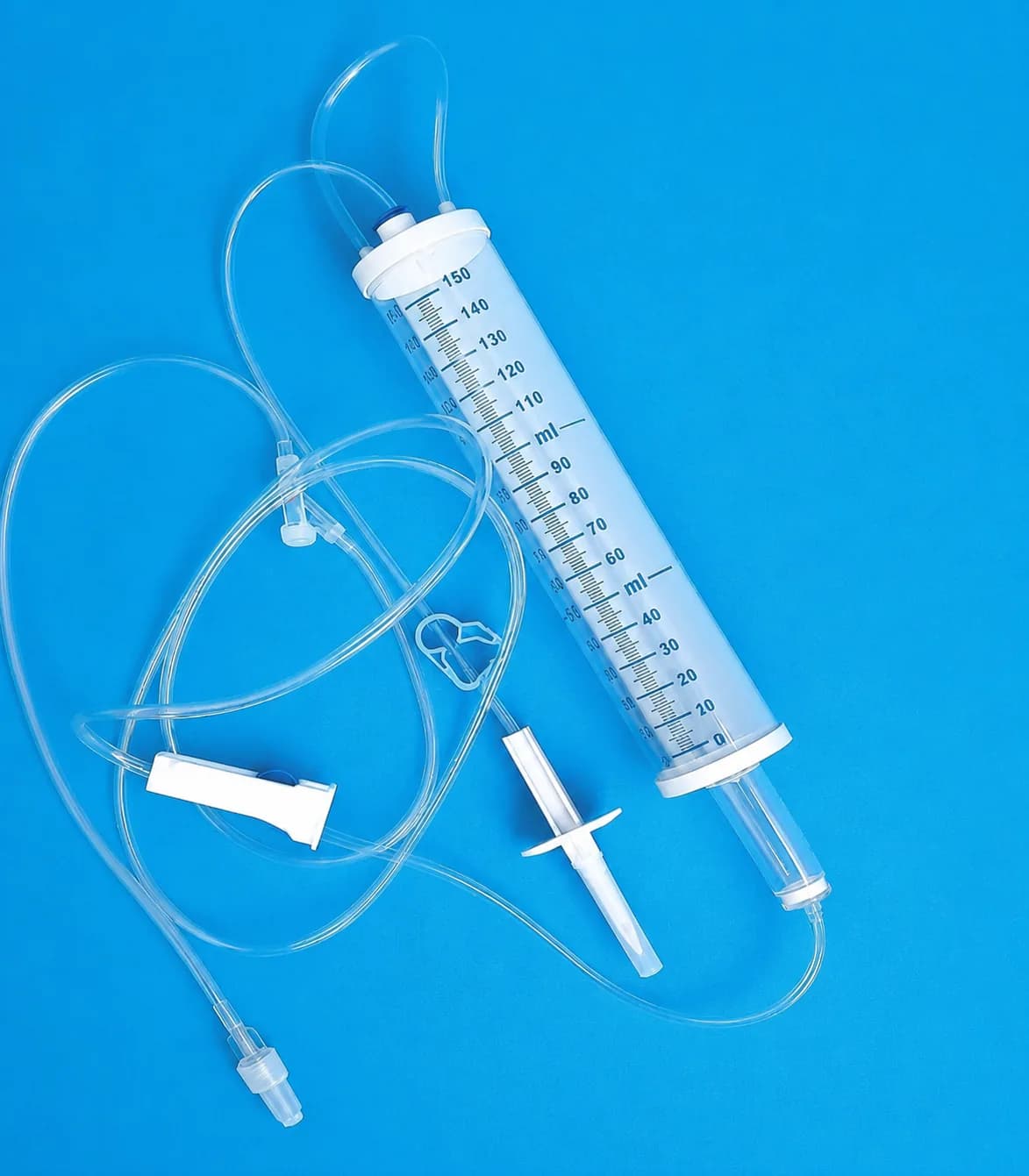

Pediatric Burette Infusion Set, Type B (Float Valve, Capped Luer Lock)
Pediatric burette infusion configuration
Pediatric infusion set with ABS spike, air filtration set, stop-liquid clamp, float-valve burette, filtered chamber and Y-site medicine-adding device.
Key takeaways
- Type B adds a float valve in the 100 or 150 ml burette and a stop-liquid clamp.
- Filtered drip chamber and Y-site; 1.5 m PVC tube (3.0 × 4.0 mm ID/OD) ending in a Luer lock connector with protective cap.
- Supplied without a needle; choose Type A or Type C if you need a hypodermic needle attached.
Type B is the pediatric burette infusion set in our range with a float valve. A burette float valve is designed to close the burette outlet when the burette empties, helping to stop air from being drawn into the line below. A stop-liquid clamp and a filtered drip chamber complete the configuration.
Key Features
- Burette of 100 ml or 150 ml with float valve
- Stop-liquid clamp
- ABS spike with air filtration set
- Filtered drip chamber
- Y-site medicine-adding device
- 1.5 m standard PVC tube, 3.0 × 4.0 mm ID/OD
- Luer lock connector with protective cap
Applications
For pediatric infusion where the protocol or tender asks for a float-valve burette. The capped Luer lock end connects to the access device already in place, so no needle is included. Tenders written in UK English may call it a paediatric burette set.
How to specify when requesting a quote
- Burette volume: 100 ml or 150 ml
- Drop factor and any chamber filter rating your tender states
- Unit pack and carton quantity
- Label language
- Destination market and required documents
Technical and purchasing information
Pediatric infusion set with ABS spike, air filtration set, stop-liquid clamp, float-valve burette, filtered chamber and Y-site medicine-adding device. The final configuration, packaging and supporting documents are confirmed against your order and destination market.
- Burette
- 100 ml / 150 ml with float valve
- Tube
- 1.5 m standard PVC tube, 3.0 × 4.0 mm ID/OD
- Terminal
- Luer Lock connector with protective cap
Application and configuration
Confirm the intended use, material, size and model before sample approval or production. Product-specific options are recorded in the quotation and specification sheet.
Packaging and cartons
Packaging, artwork and carton requirements can be reviewed for the selected product. Feasibility is confirmed for the exact order rather than assumed across the category.
Quality and documentation
Available quality and export records vary by product and market. Share the destination and required documents so they can be checked before approval.
Buyer questions, answered
Clear answers for preparing a comparable sourcing request for Disposable 100ml/150ml Infusion Set with Burette for Children (Tape-B).
What does the float valve in a burette set do?
The float valve sits at the burette outlet. It is designed to close when the burette empties, which helps stop air from being drawn into the line below.
Does the Type B burette set come with a needle?
No. Type B ends in a Luer lock connector with a protective cap for connection to an access device already in place. Types A and C end in a Luer lock connector with hypodermic needle.
Is the drip chamber filtered?
Yes. Type B has a filtered drip chamber, and the spike has an air filtration set. The filter rating is confirmed on the specification sheet supplied with the quotation.
When should I choose Type B instead of Type A?
Choose Type B when your protocol calls for a float-valve burette, a stop-liquid clamp and a needle-free capped end. Choose Type A when you need a hypodermic needle attached and a PE hanging strap.
Request the technical datasheet
Include your destination market, target quantity and preferred packaging.
