Pediatric Burette Infusion Set, Type C (100 ml, PVC Strap)
Pediatric burette infusion configuration

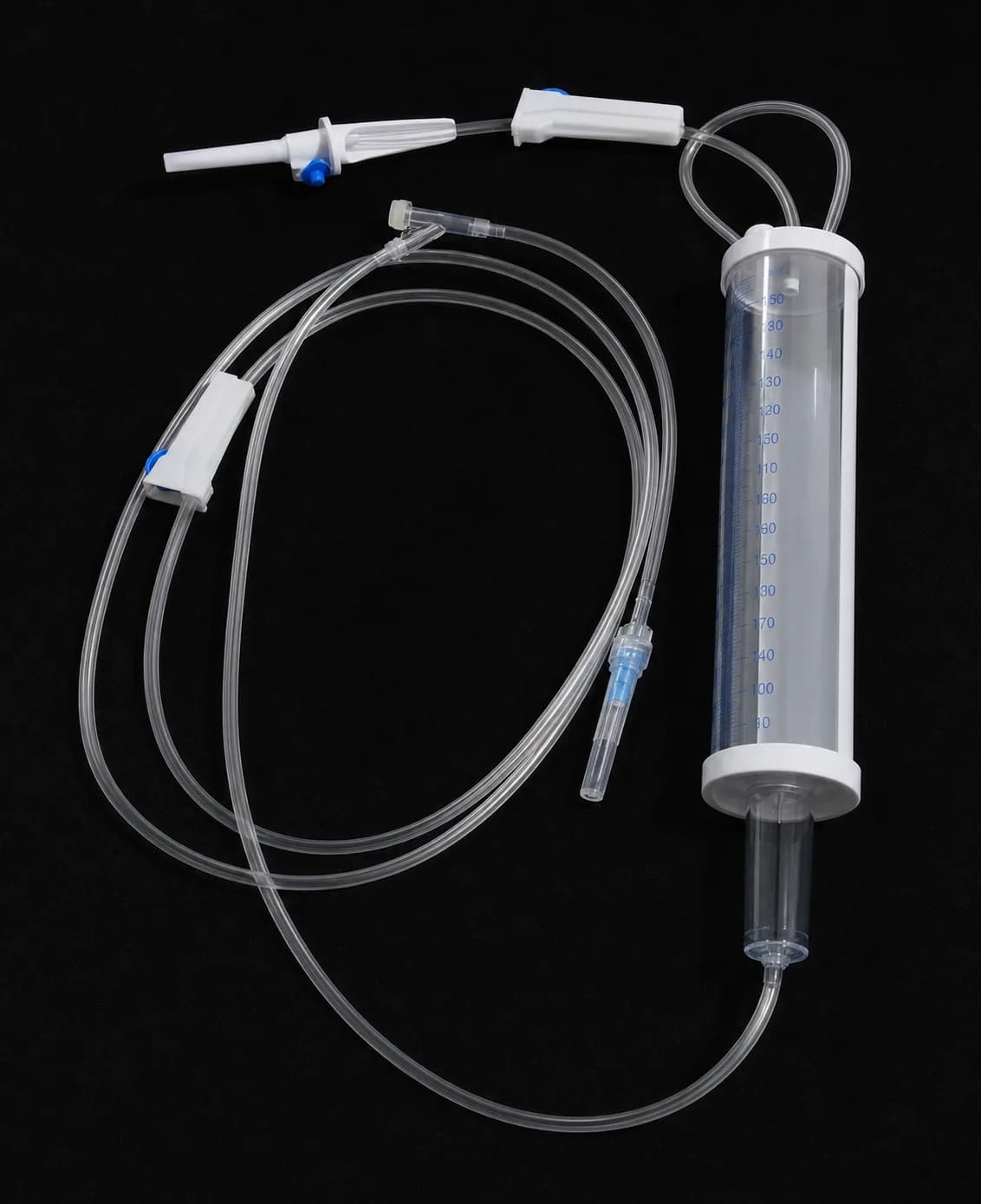

Pediatric infusion set with ABS spike, air filtration set, 100 ml burette with PVC hanging strap, 48 mm chamber and Y-site medicine-adding device.
Key takeaways
- Type C is the 100 ml-only configuration, with a PVC hanging strap.
- 48 mm drip chamber without filter, Y-site medicine-adding device and ABS spike with air filtration set.
- 1.5 m PVC tube (3.0 × 4.0 mm ID/OD) with Luer lock connector and hypodermic needle.
Type C is the 100 ml burette infusion set in our pediatric range. When a tender line specifies a 100 ml burette only, Type C is the direct match. It uses a PVC hanging strap and a 48 mm drip chamber without filter, and ends in a Luer lock connector with hypodermic needle.
Key Features
- 100 ml burette with PVC hanging strap
- 48 mm drip chamber without filter
- ABS spike with air filtration set (air vent, separate from the chamber)
- Y-site medicine-adding device
- 1.5 m standard PVC tube, 3.0 × 4.0 mm ID/OD
- Luer lock connector with hypodermic needle
Applications
For pediatric infusions where the maximum measured volume is 100 ml and the protocol does not call for a chamber filter or float valve. The Y-site on the line is used to add medication. If you need 150 ml capacity, see Type A; for a float valve, see Type B.
How to specify when requesting a quote
- Confirm 100 ml burette volume
- Drop factor required by your protocol
- Needle size, if a specific gauge is required
- Unit pack and carton quantity
- Destination market and required documents
Technical and purchasing information
Pediatric infusion set with ABS spike, air filtration set, 100 ml burette with PVC hanging strap, 48 mm chamber and Y-site medicine-adding device. The final configuration, packaging and supporting documents are confirmed against your order and destination market.
- Burette
- 100 ml with PVC hanging strap
- Chamber
- 48 mm chamber without filter
- Tube
- 1.5 m standard PVC tube, 3.0 × 4.0 mm ID/OD
- Terminal
- Luer Lock connector with hypodermic needle
Application and configuration
Confirm the intended use, material, size and model before sample approval or production. Product-specific options are recorded in the quotation and specification sheet.
Packaging and cartons
Packaging, artwork and carton requirements can be reviewed for the selected product. Feasibility is confirmed for the exact order rather than assumed across the category.
Quality and documentation
Available quality and export records vary by product and market. Share the destination and required documents so they can be checked before approval.
Buyer questions, answered
Clear answers for preparing a comparable sourcing request for Disposable 100ml Infusion Set with Burette for Children (Tape-C).
What is a burette set used for in pediatrics?
It lets staff measure and limit the volume given to a child. A set volume is let into the graduated burette from the main container and then infused, which helps limit each infusion to the measured amount.
How is a 100 ml burette set different from a 150 ml set?
The burette holds a smaller maximum volume. Type C is built for 100 ml only; Type A and Type B are offered with a 100 ml or 150 ml burette.
Does Type C have a filter?
The drip chamber is a 48 mm chamber without filter. The spike carries a separate air filtration set that vents the container; it is not a fluid filter.
What are the parts of the Type C burette infusion set?
An ABS spike with air filtration, a 100 ml burette with PVC hanging strap, a 48 mm unfiltered drip chamber, a Y-site, a 1.5 m PVC tube and a Luer lock connector with hypodermic needle.
