Pediatric Burette Infusion Set, Type A (100/150 ml, PE Strap)
Pediatric burette infusion configuration

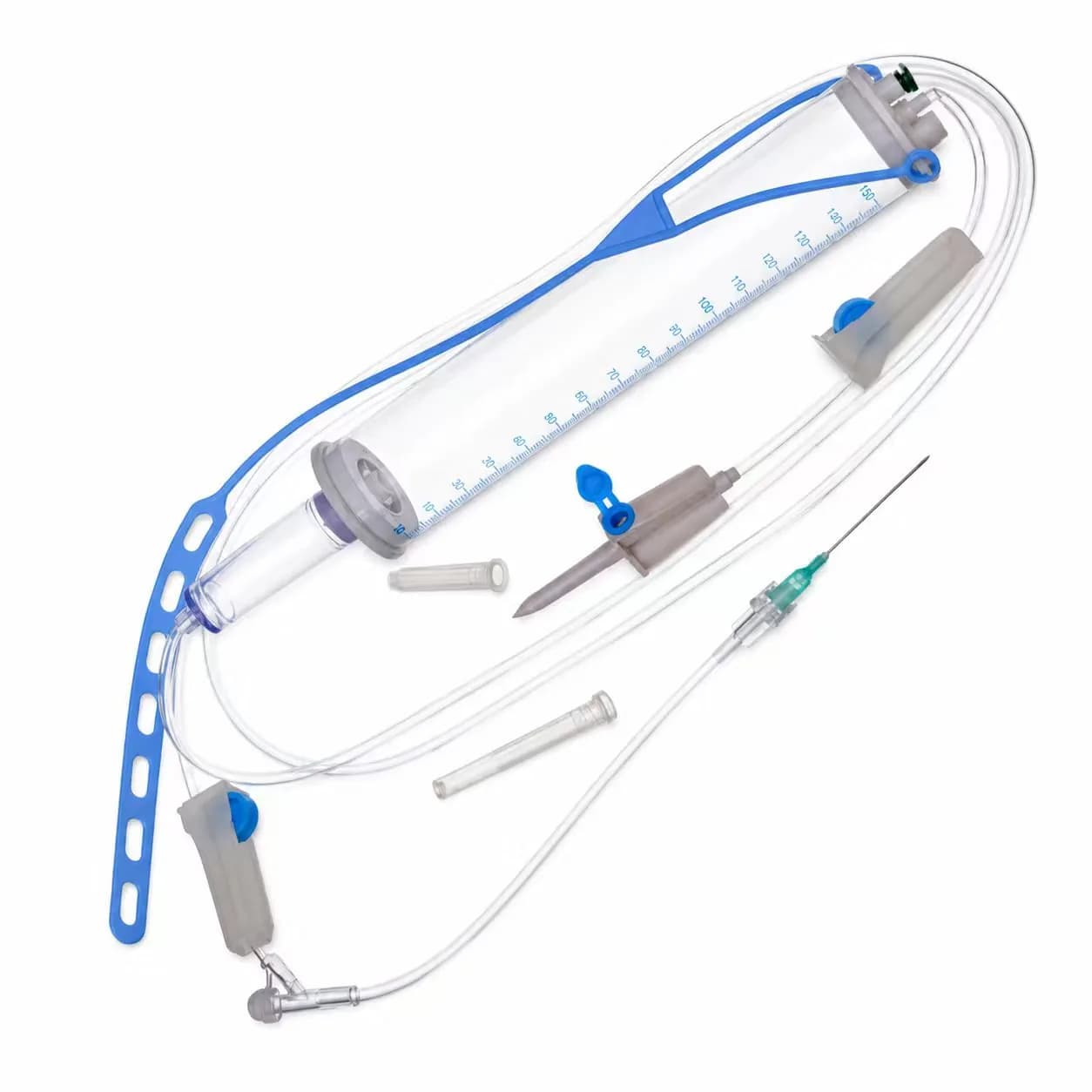

Pediatric infusion set with ABS spike, air filtration set, 100 ml / 150 ml burette with PE hanging strap, 48 mm chamber and Y-site medicine-adding device.
Key takeaways
- Type A offers a 100 or 150 ml burette with PE hanging strap, a 48 mm drip chamber and a Y-site.
- 1.5 m PVC tube (3.0 × 4.0 mm ID/OD) ending in a Luer lock connector with hypodermic needle.
- Choose Type B for a float-valve burette with capped Luer lock, or Type C for a 100 ml burette with PVC strap.
The Type A burette infusion set is a disposable pediatric infusion set with a graduated burette, so a measured volume can be drawn from the main container before it reaches the child. It is the configuration in our range that covers both 100 ml and 150 ml burette volumes with a needle attached.
Key Features
- Burette of 100 ml or 150 ml with PE hanging strap
- ABS spike with air filtration set
- 48 mm drip chamber
- Y-site medicine-adding device
- 1.5 m standard PVC tube, 3.0 × 4.0 mm ID/OD
- Luer lock connector with hypodermic needle
Applications
For pediatric wards and clinics where infusion volume must be measured and limited. Medication can be added through the Y-site. Type A suits buyers who want one listing to answer both 100 ml and 150 ml tender lines.
How to specify when requesting a quote
- Burette volume: 100 ml or 150 ml
- Drop factor required by your protocol
- Needle size, if a specific gauge is required
- Unit pack and carton quantity
- Destination market and required documents
Technical and purchasing information
Pediatric infusion set with ABS spike, air filtration set, 100 ml / 150 ml burette with PE hanging strap, 48 mm chamber and Y-site medicine-adding device. The final configuration, packaging and supporting documents are confirmed against your order and destination market.
- Burette
- 100 ml / 150 ml with PE hanging strap
- Tube
- 1.5 m standard PVC tube, 3.0 × 4.0 mm ID/OD
- Terminal
- Luer Lock connector with hypodermic needle
Application and configuration
Confirm the intended use, material, size and model before sample approval or production. Product-specific options are recorded in the quotation and specification sheet.
Packaging and cartons
Packaging, artwork and carton requirements can be reviewed for the selected product. Feasibility is confirmed for the exact order rather than assumed across the category.
Quality and documentation
Available quality and export records vary by product and market. Share the destination and required documents so they can be checked before approval.
Buyer questions, answered
Clear answers for preparing a comparable sourcing request for Disposable 100ml/150ml Infusion Set with Burette for Children (Tape-A).
What is a burette infusion set used for?
It delivers a measured volume of fluid, typically in pediatric care. Fluid is let into the graduated burette from the main container, which helps limit the infusion to the amount measured into the burette.
What are the parts of the Type A burette set?
An ABS spike with air filtration, a 100 or 150 ml burette with PE hanging strap, a 48 mm drip chamber, a Y-site for adding medicine, a 1.5 m PVC tube and a Luer lock connector with hypodermic needle.
What is the drop factor of this burette set?
The drop factor is not listed on this page. It is confirmed on the specification sheet supplied with the quotation; state the drop factor your protocol requires in your enquiry.
How is Type A different from Type B and Type C?
Type A has a PE hanging strap, a 48 mm chamber and a hypodermic needle. Type B adds a float-valve burette, a stop-liquid clamp and a filtered chamber, and ends in a Luer lock with protective cap. Type C has a 100 ml burette only, a PVC strap and an unfiltered 48 mm chamber.
