Infusion & Injection

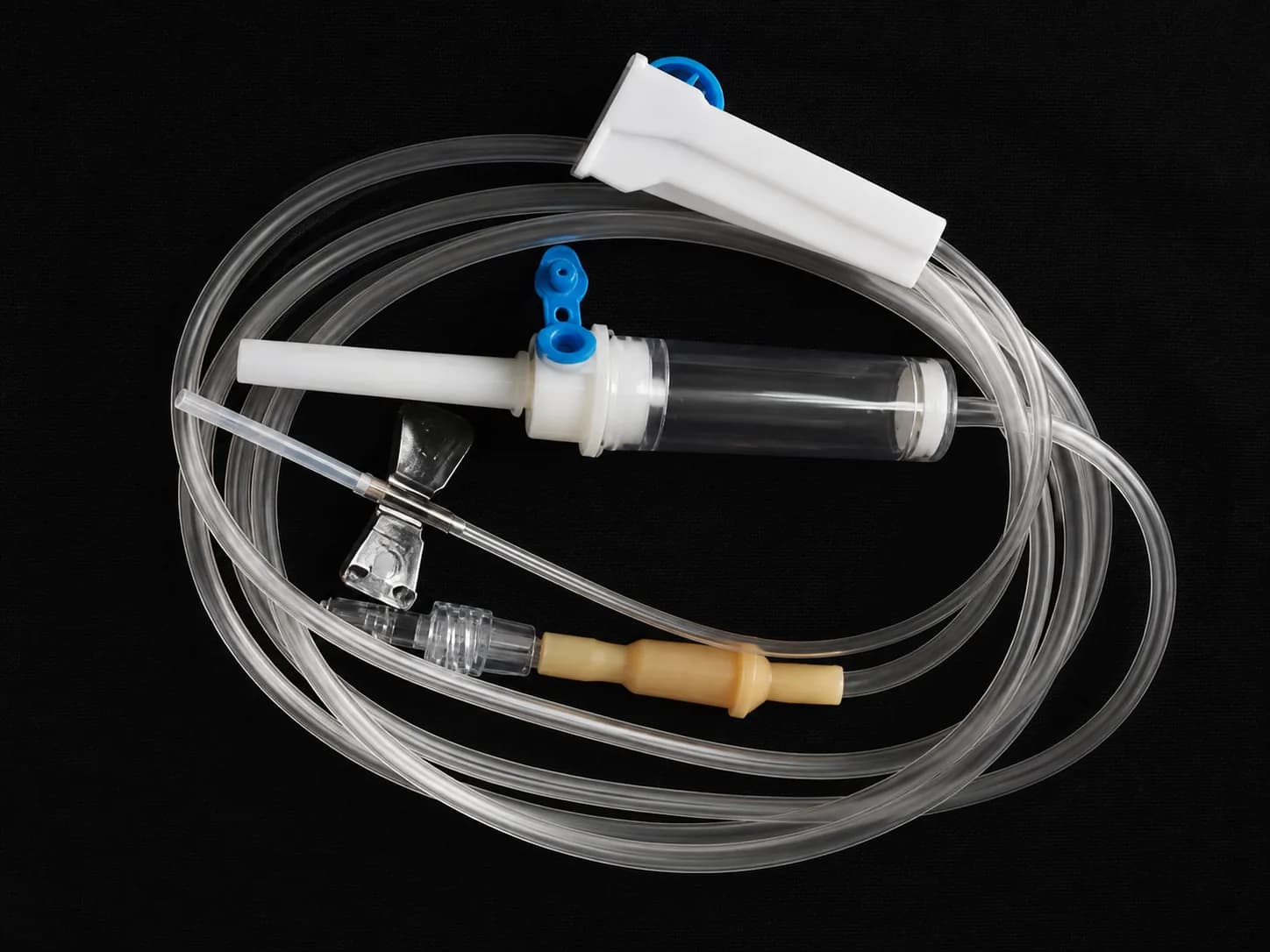

Infusion Set with Scalp Vein Needle (Butterfly), Luer Lock
Basic export configuration · Butterfly set
Basic single-use infusion set with a 48 mm chamber, air vent, fluid filter, standard flow regulator and Luer Lock connection with butterfly scalp vein set.
Key takeaways
- Complete gravity infusion set with a butterfly scalp vein set attached through a Luer Lock connection.
- Basic line: 48 mm vented drip chamber with fluid filter, 1.5 m PVC tube (3.0 × 3.86 mm ID/OD), standard PP/PE regulator.
- Winged needle gives better handling for short infusions, small veins and paediatric patients; gauge is fixed at quotation.
This infusion set with scalp vein needle arrives with a butterfly set already connected through a Luer Lock, so nurses open one pack instead of two. The flexible wings make the needle easy to grip during venipuncture and easy to tape flat afterwards, which is why an IV set with butterfly needle is widely used for short infusions and for patients with small veins.
Key Features
- Butterfly scalp vein set on a Luer Lock connection
- 48 mm drip chamber with air vent and fluid filter
- 1.5 m standard PVC tube, 3.0 × 3.86 mm ID/OD
- Standard PP/PE flow regulator
- Sterile, single use
Applications
Short IV infusions in outpatient and day-care settings, paediatric wards, elderly patients with fragile veins, and clinics that give single-dose infusions. When the butterfly is bought separately, see our standalone scalp vein set, listed from 18G to 27G.
How to specify when requesting a quote
- Scalp vein needle gauge (or gauge mix per order)
- Butterfly tubing length and wing color coding
- Drop factor and spike type
- DEHP and latex declarations
- Pack counts, label language and destination market
Technical and purchasing information
Basic single-use infusion set with a 48 mm chamber, air vent, fluid filter, standard flow regulator and Luer Lock connection with butterfly scalp vein set. The final configuration, packaging and supporting documents are confirmed against your order and destination market.
- Chamber
- 48 mm chamber with air vent and fluid filter
- Tube
- 1.5 m standard PVC tube, 3.0 × 3.86 mm ID/OD
- Flow Regulator
- Standard PP/PE flow regulator
- Connector
- Luer Lock with butterfly scalp vein set
Application and configuration
Confirm the intended use, material, size and model before sample approval or production. Product-specific options are recorded in the quotation and specification sheet.
Packaging and cartons
Packaging, artwork and carton requirements can be reviewed for the selected product. Feasibility is confirmed for the exact order rather than assumed across the category.
Quality and documentation
Available quality and export records vary by product and market. Share the destination and required documents so they can be checked before approval.
Buyer questions, answered
Clear answers for preparing a comparable sourcing request for Infusion Sets for Single Use — Luer Lock with Scalp Vein Set.
What is a scalp vein needle used for?
A scalp vein needle, also called a butterfly needle, is a short steel needle with flexible plastic wings and a length of fine tubing. The wings make it easy to hold and tape down, so it is used for short infusions, small or fragile veins and paediatric patients. On this product it comes attached to the infusion set through a Luer Lock.
Butterfly needle vs regular needle: when should you choose which?
A straight hypodermic needle on an infusion set is simple and low cost. A butterfly needle adds wings and a short flexible tube, which gives more control during insertion and less movement at the puncture site. Buyers usually choose the butterfly version for children, elderly patients and short infusions.
What size scalp vein needle comes with the set?
The gauge is chosen in the quotation. Our standalone scalp vein sets are listed from 18G to 27G; tell us which gauges you need on the infusion set and we will confirm availability on the specification sheet.
Can I buy the scalp vein set separately?
Yes. The disposable scalp vein set is listed as its own product in 18G to 27G, with PVC wings, flexible PVC tubing and a Luer fitting.
Request the technical datasheet
Include your destination market, target quantity and preferred packaging.
