Urology & Drainage

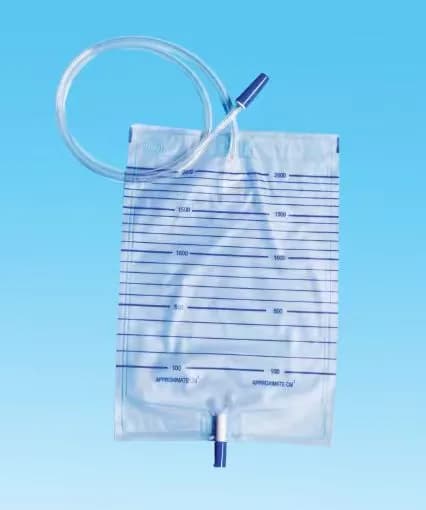

Urine Bag with Push-Pull Valve, 2000 ml (HP-005)

Push-pull outlet drainage

The urine drainage bag is designed for safe and convenient urine collection, featuring a push-pull outlet valve for easy drainage.

Request a quote View specifications ↓

Key takeaways

2000 ml PVC urine drainage bag with a push-pull outlet valve, so the bag is emptied without disconnecting the catheter.
Non-return valve helps stop backflow toward the catheter; transparent bag with printed graduations.
Inlet tube 90 or 130 cm, outer diameter 6.0 or 6.4 mm, bag film 0.12 mm; EO sterilized, single use.

The HOPE Medical urine bag with push-pull valve (HP-005) is a 2000 ml urine drainage bag that is emptied through a push-pull outlet at the bottom. The valve is pulled to drain and pushed to close, and its position is easy to check at a glance. A non-return valve helps stop urine flowing back up the tube toward the catheter.

Key Features

Push-pull drainage valve
Non-return valve
Capacity 2000 ml with clear graduations
PVC bag with 0.12 mm film
Tube 90 or 130 cm, outer diameter 6.0 or 6.4 mm, universal connector
EO sterilized, single use

Applications

Continuous urine drainage from Foley catheters on wards, in ICU and in long-term care, where the bag is emptied several times before it is changed. Compared with the T valve (cross valve) version, the push-pull outlet opens with a straight pull instead of a turn; bag and tube options are the same.

How to specify when requesting a quote

Model HP-005 and quantity
Tube length and outer diameter
With or without hanger
Unit pack, carton and private label
Destination market and documents

Technical and purchasing information

The urine drainage bag is designed for safe and convenient urine collection, featuring a push-pull outlet valve for easy drainage. The final configuration, packaging and supporting documents are confirmed against your order and destination market.

Material: Medical-grade PVC
Capacity: 2000 ml
Outlet: Push-pull drainage valve
Features: Clear graduations and non-return valve
Tubing: Flexible PVC tube with universal connector
Sterilization: EO
Use: Single use only

Application and configuration

Confirm the intended use, material, size and model before sample approval or production. Product-specific options are recorded in the quotation and specification sheet.

Packaging and cartons

Packaging, artwork and carton requirements can be reviewed for the selected product. Feasibility is confirmed for the exact order rather than assumed across the category.

Quality and documentation

Available quality and export records vary by product and market. Share the destination and required documents so they can be checked before approval.

Buyer questions, answered

Clear answers for preparing a comparable sourcing request for Urine Bag with Push-Pull Valve.

Push-pull valve vs T valve urine bag: which is easier to empty?

Both can be emptied with one hand. A push-pull valve opens with a straight pull and closes with a push, and its open or closed position is easy to see. A T valve (cross valve) opens by turning the tap. The choice usually follows what nurses in your market are used to.

What does the non-return valve on a urine bag do?

It lets urine flow into the bag but helps stop it flowing back up the tube toward the catheter, for example when the bag is lifted or squeezed. The bag should still be kept below bladder level.

Should the catheter bag valve be kept open or closed?

The outlet valve stays closed except while the bag is being emptied. After draining, close it fully and clean the outlet according to your protocol.

Is the push-pull valve urine bag sterile?

The listed sterilization method is ethylene oxide (EO). Sterility labeling, pack format and shelf life for your market are confirmed with the quotation.
